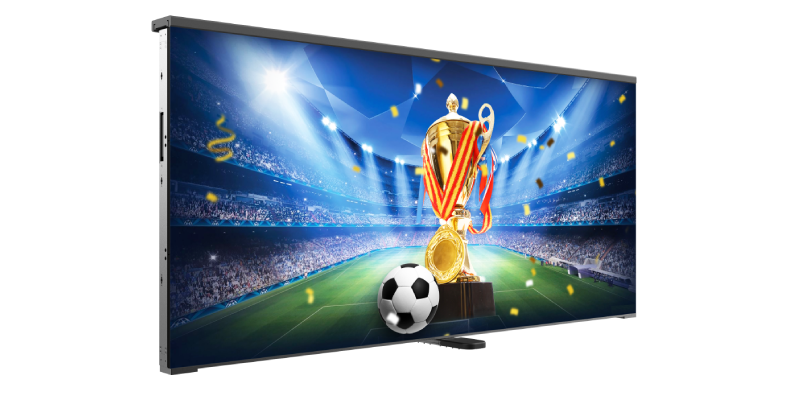

XTQ Series
Perimeter LED Display
Description
The XTQ Series redefines perimeter LED displays for demanding sports venues—from football stadiums to ice hockey rinks and basketball arenas. Compliant with FIFA and UEFA technical requirements, it delivers a 7680Hz refresh rate and 6000-nit brightness for crisp, flicker-free performance under high-speed cameras and intense lighting. IP65-rated protection on both the front and rear ensures reliable operation in indoor and outdoor environments, while soft-edge padding safeguards spectators and operators. Engineered for rapid deployment, the XTQ features a rear maintenance design—modules can be replaced from the front—along with quick-lock cabinets and integrated cable management for a clean, secure setup. Its lightweight aluminum structure, equipped with folding handles and rotating feet, enables effortless transport, flexible positioning, and stable installation, even in temporary or high-traffic settings.
Technical Specifications
| Model | XTQ Series |
|---|---|
| Pixel Pitch(mm) | 6.25 / 8.3 / 10 / 12.5×10（W×H) |
| Module Dimensions(mm) | 500×300 (P6.2/P8.3/P10/P12.5×10), 500×320 (P10), 500×200 (P10) |
| Cabinet Dimensions(mm) | 2000×900 / 2000×960 / 1000×900 / 1000×640 |
| Max. Brightness(nits) | 6000 |
| Refresh Rate(Hz) | ≥7680 |
| Maintenance | Rear Maintenance Design - Modules can be replaced from front |
Key Features
Tool-free maintenance & Quick installation
Handy and Reliable
Lighter in weight compared to similar products
CE,RoHS, FCC, UKCA,etc.Compliant
IP65 (Front/Rear）
High Speed Photography Compliant
