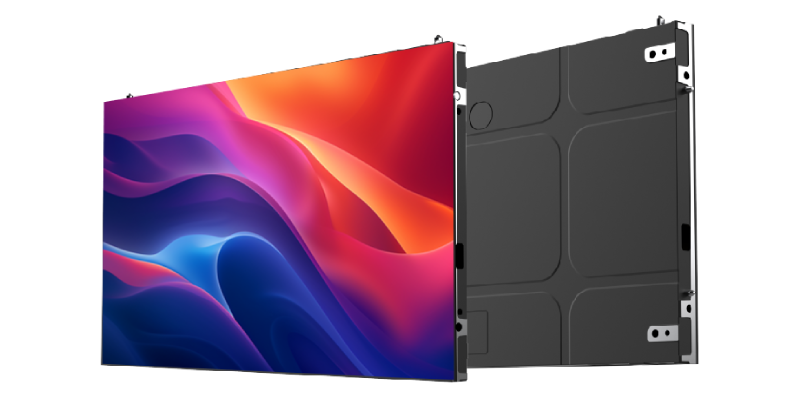

VEIII GOB Series
Subway LED Display Solutions
Description
The VE III GOB Series delivers unmatched reliability in subway and rail environments. Its patented non-magnetic modules eliminate magnetization to ensure superior display quality for railway/subway applications. Meanwhile, GOB encapsulation provides IP54-rated protection against dust and moisture.The die-cast aluminum cabinet enables efficient heat dissipation, while the front-access design allows fast, safe maintenance in confined spaces—no rear clearance required. With 800 nits brightness, a 10,000:1 contrast ratio, and a 160° viewing angle, the display guarantees clear readability from dim tunnels to well-lit stations. EMC Class B certified, the VE III GOB offers metro operators a future-proof solution that prioritizes uptime, safety, and passenger trust.
Technical Specifications
| Model | VEIII GOB Series |
|---|---|
| Pixel Pitch(mm) | 1.25 / 1.5 / 1.8 / 2.5 |
| Module Dimensions(mm) | 150×337.5 |
| Cabinet Dimensions(mm) | 600×337.5 |
| Max. Brightness(nits) | 800 |
| Refresh Rate(Hz) | ≥3840 |
| Maintenance | Front |
Key Features
Non-Magnetic module installation technology
Fully front maintenance design
Certified for low electromagnetic emissions
Wireless design at the back of the cabinet
GOB module-level protection technology
High-precision alignment and bonding design
All-metal body with excellent heat dissipation performance
Highly reliable backup technology
